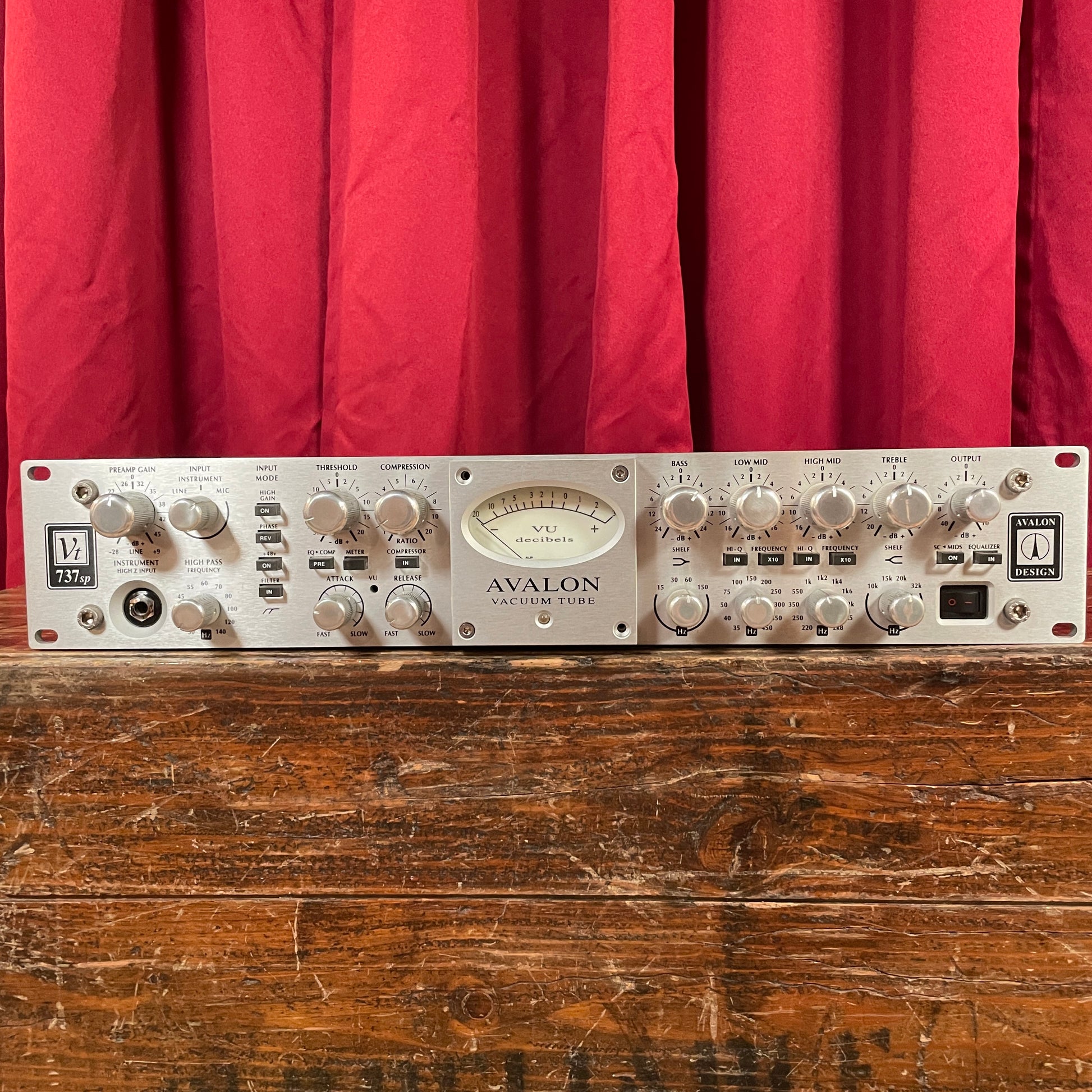

Avalon VT-737sp Tube Channel Strip

Avalon VT-737sp Tube Channel Strip

Condition:

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out

For your kind consideration is this Avalon VT-737sp tube channel strip. This very sought after studio grade unit is in tip top condition. Used only in a home studio environment and lived it's life in a rack. Excellent condition. Enjoy!

Class A preamp design with three input selections

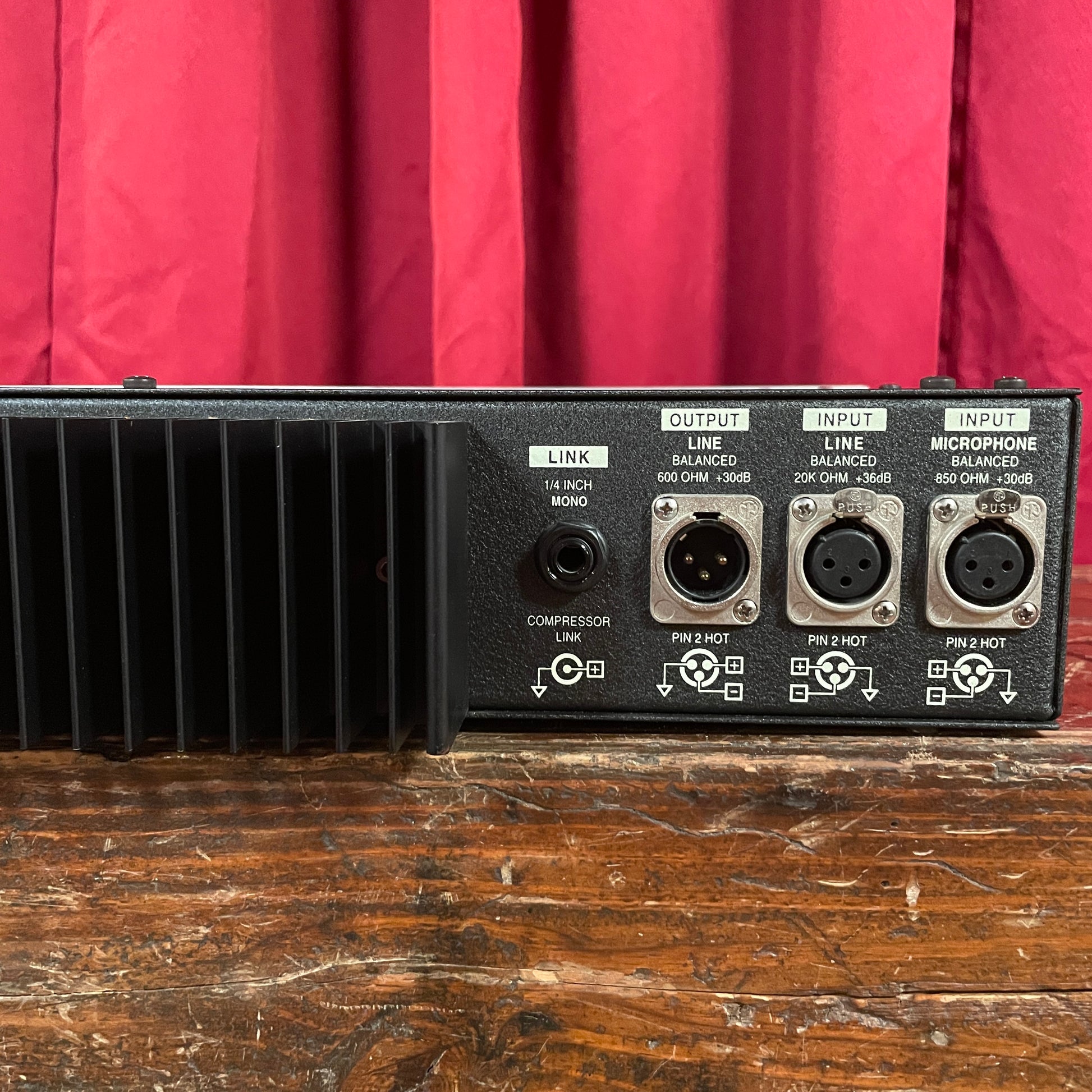

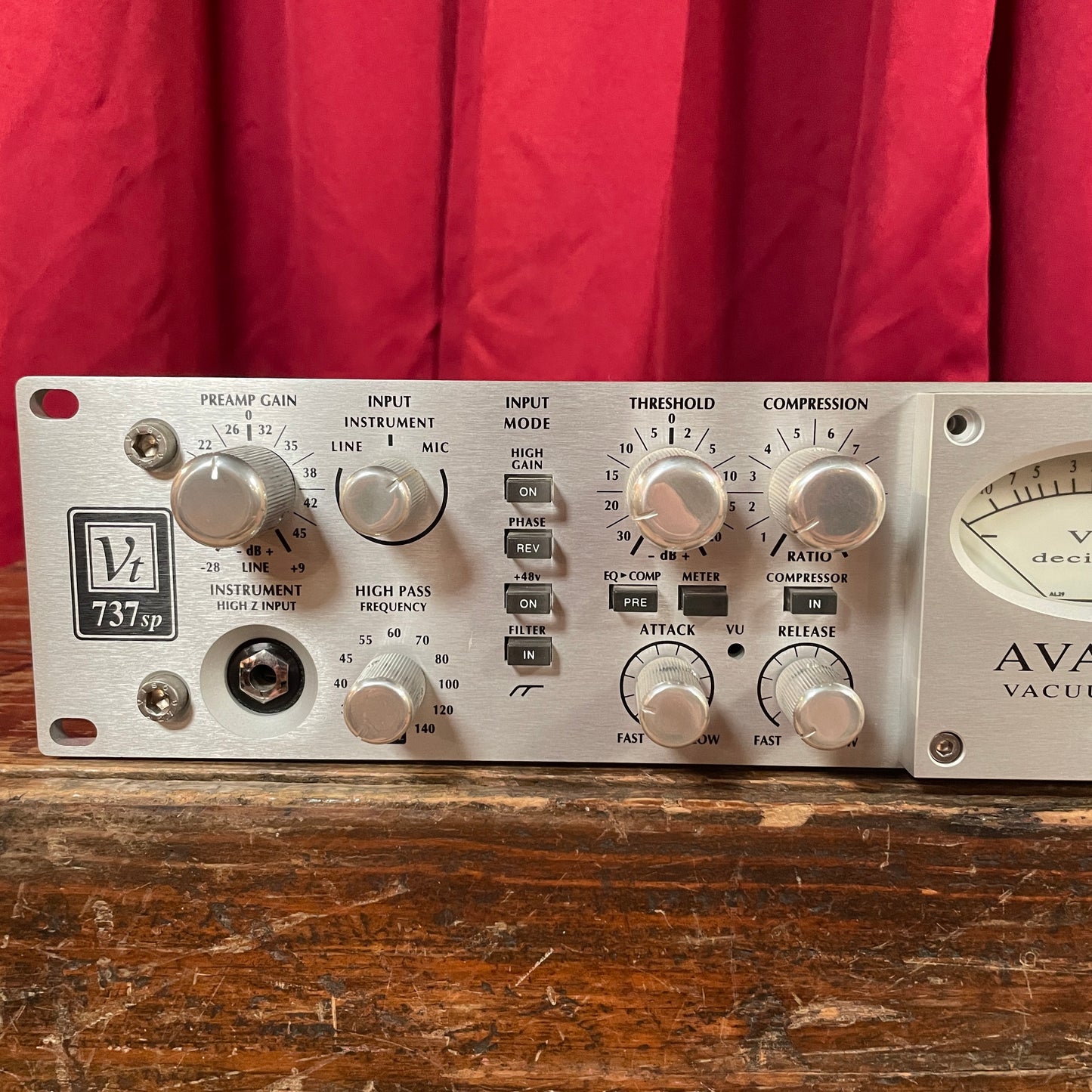

The VT-737sp has three input selections: First, it features a higher-performance microphone input transformer with 48-volt phantom selection. Second, the VT-737sp offers an instrument DI high-source input with a jack located on front panel. Finally, the VT-737sp includes a balanced line input with discrete high-level Class A circuitry. The Class A preamplifier utilizes two cascaded, dual vacuum tube triodes configured with minimum negative feedback. A high-gain switch boosts the overall gain of the preamplifier. The four high-quality tubes are configured as singled-ended anode coupled followers. A passive/variable highpass filter and hardwired relay bypass completes the VT-737sp's input signal conditioning. A phase reverse relay is available on all three inputs.

Opto-compressor with minimum signal path

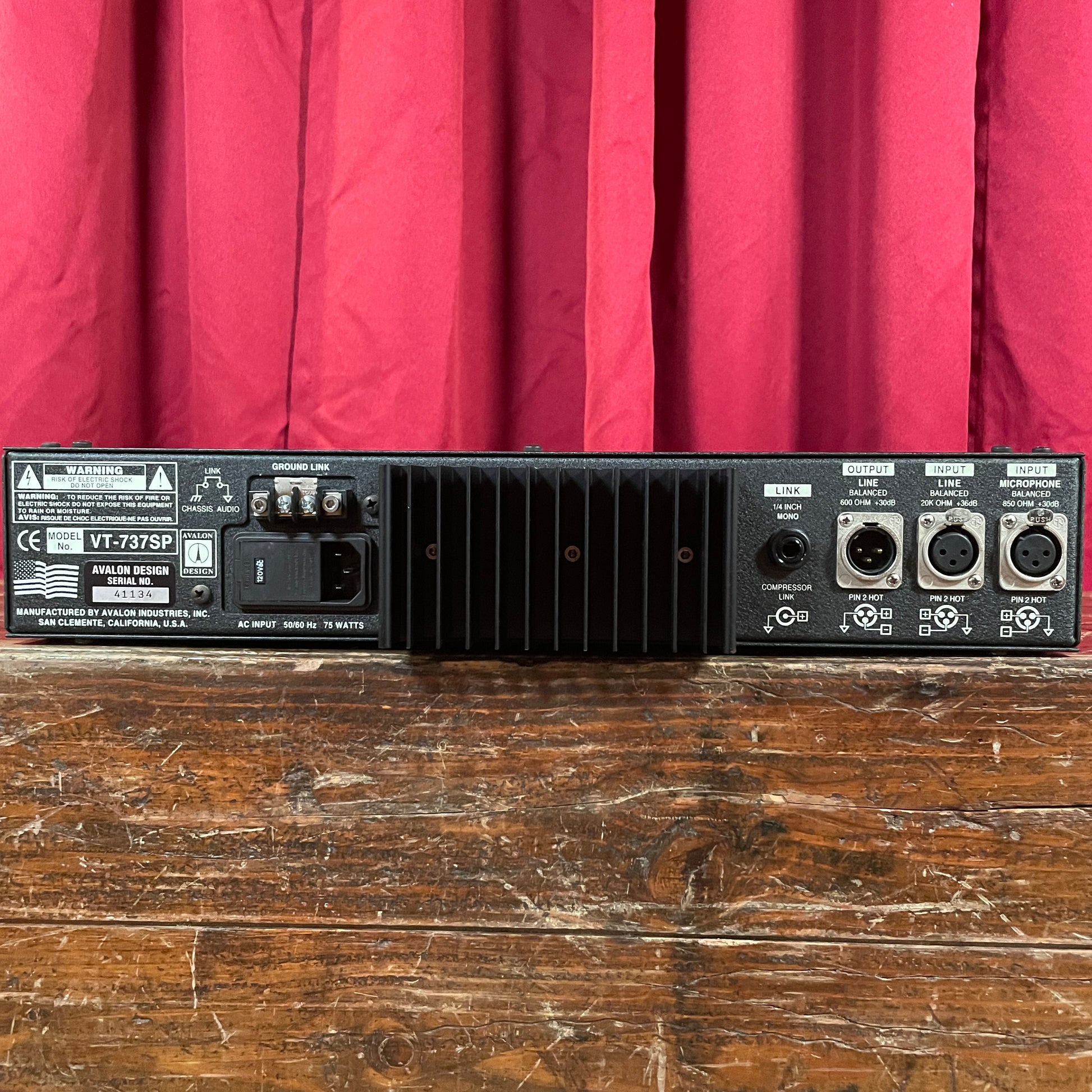

The VT-737sp's opto-compressor features a minimum signal path design with twin Class A vacuum tube triodes for gain matching. The optical attenuator acts as a simple passive level controller. Full dynamic control from soft compression to hard- knee limiting can be achieved with threshold, ratio-compression, attack and release controls plus gain reduction selection on the large VU meter. Special spectral control including de-ess is available with the dual sweep mid EQ to side-chain switch. The VT-737sp's EQ section can be flipped pre or post the opto-compressor via a front-panel switch for alternate effects and tone shaping. Two VT-737sps can be linked via a rear panel link cable for stereo tracking. The compressor bypass is a sealed silver relay for the most direct signal path.

Sweepable EQ and hardwired bypass

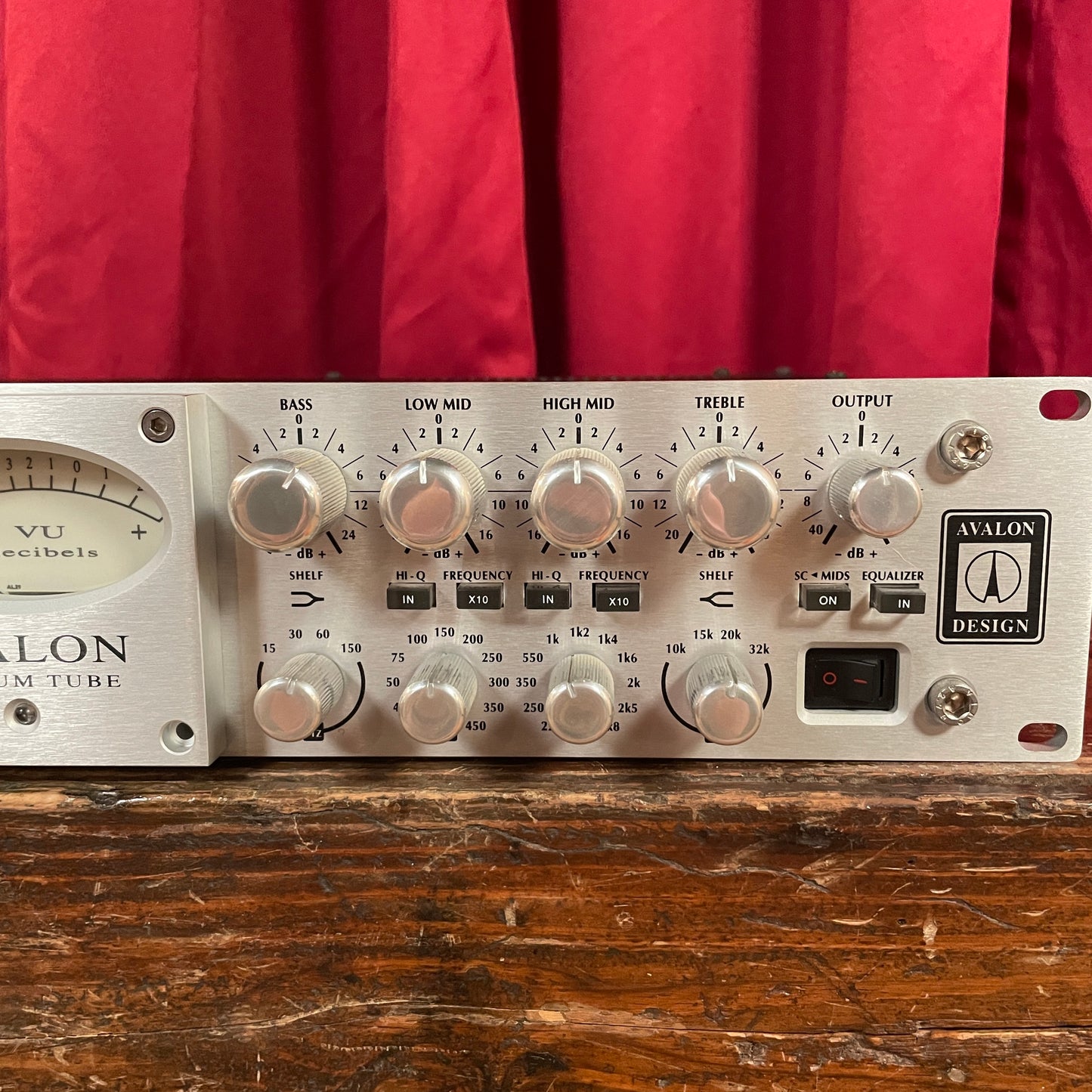

The VT-737sp equalizer utilizes 100% discrete, Class A-high-voltage transistors for optimum sonic performance. The high- and low-frequency bands provide the smooth characteristics of an all passive design, while the dual mid bands include variable frequency and switched Q-width selection. The enhanced range of the VT-737sp's mid bands is extended into the high and low bands by the use of X10 frequency multipliers. The bypass switch incorporates a sealed silver relay for the most direct signal path. When the EQ to sidechain is engaged, the high-low EQ remains in the audio path for "tone enhancement." The output level control provides a variable control of the overall signal path. The output amplifier utilizes another dual triode vacuum tube driving a 100% discrete, Class A, high-current, balanced and DC coupled low noise output amplifier.

*All orders may require a signature at time of delivery unless discussed prior to shipment.

*International customers will need to pay actual shipping cost if amount is greater than estimated shipping charge shown. In many cases, international shipping may be less than price shown. Please contact us with your country and postal code prior to purchase if you need a shipping quote, and we will send an offer with exact correct shipping charges.

Shipping:

*All orders may require a signature at time of delivery unless discussed prior to shipment.

*International customers will need to pay actual shipping cost if amount is greater than estimated shipping charge shown. In many cases, international shipping may be less than price shown. Please contact us with your country and postal code prior to purchase if you need a shipping quote, and we will send an offer with exact correct shipping charges.
