Furman RP-8D Rack Power Conditioner and Light Module with Meter

  • Sale
  • Regular price $0.00

For your kind consideration is this Furman RP-8D Rack Power Consideration Module. It's in nearly new condition and ready to power your rack. Enjoy!

The Furman Performance Series Line Conditioners are rated at 15 amps (for a total load of up to 1800 watts) combining all outlets.

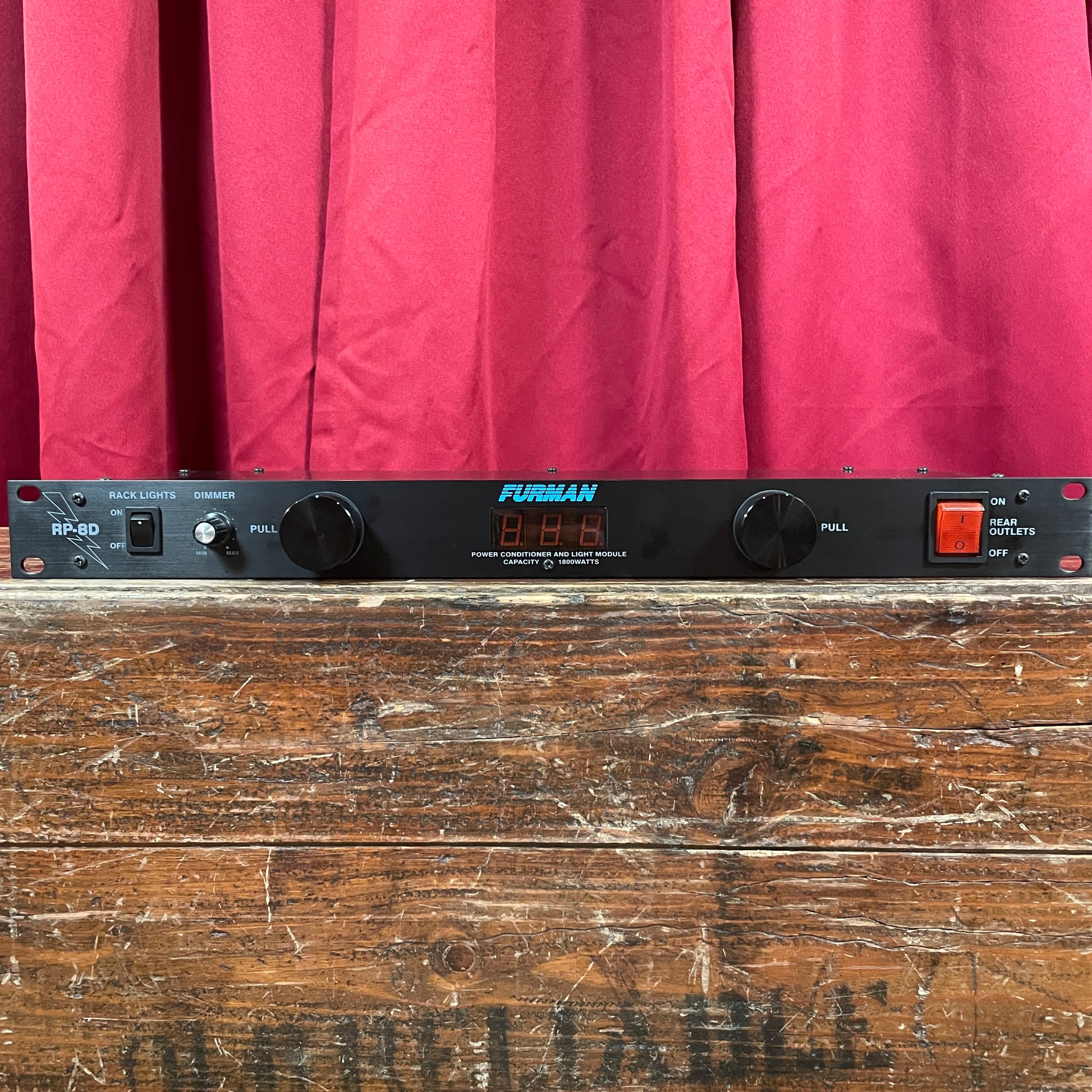

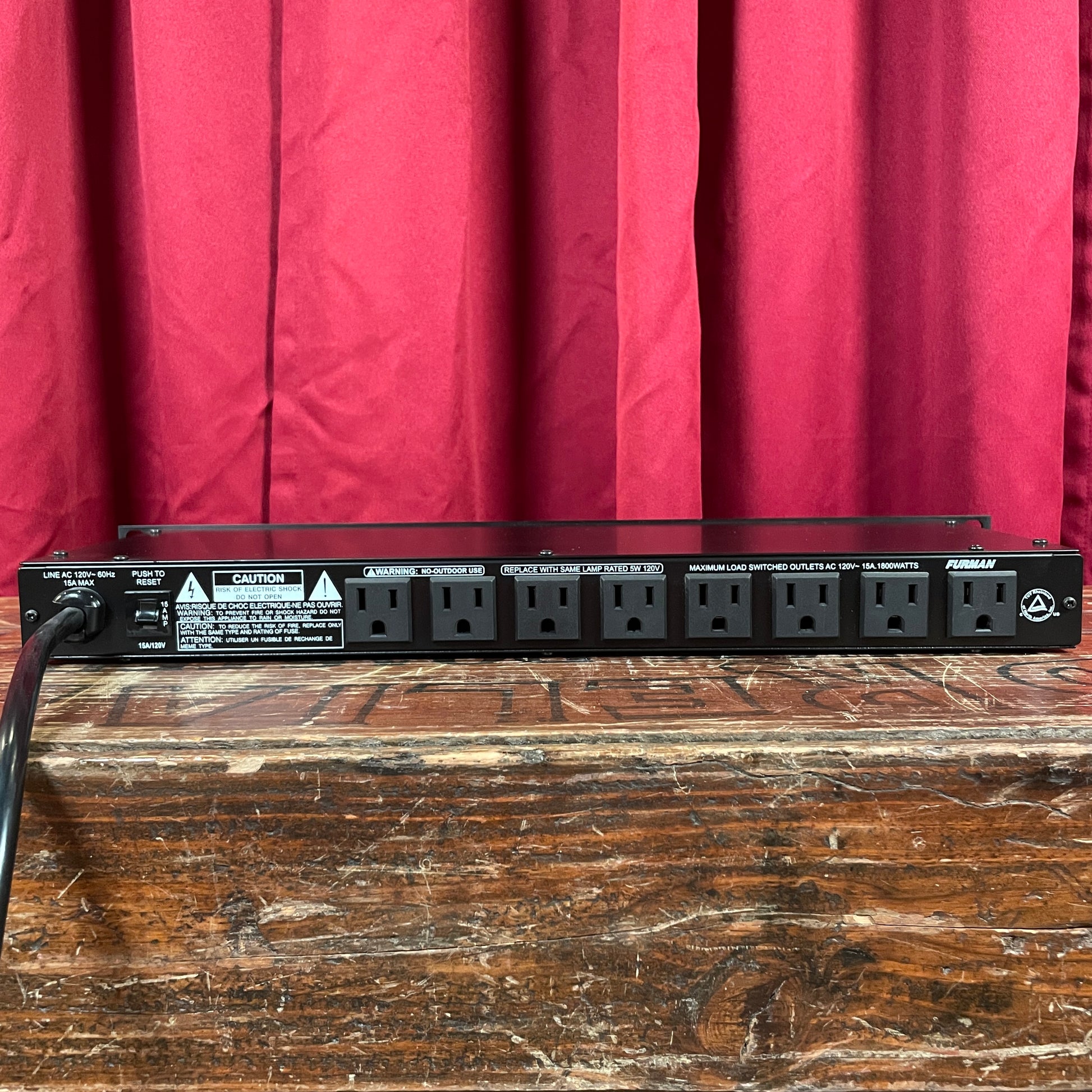

A Furman Performance Series Power Conditioner is the perfect accessory for any rack mount system. Install an RP8D in the top slot of your rack, and the eight switched AC outlets on the rear panel will power up and protect all your equipment up to a 15-amp load.

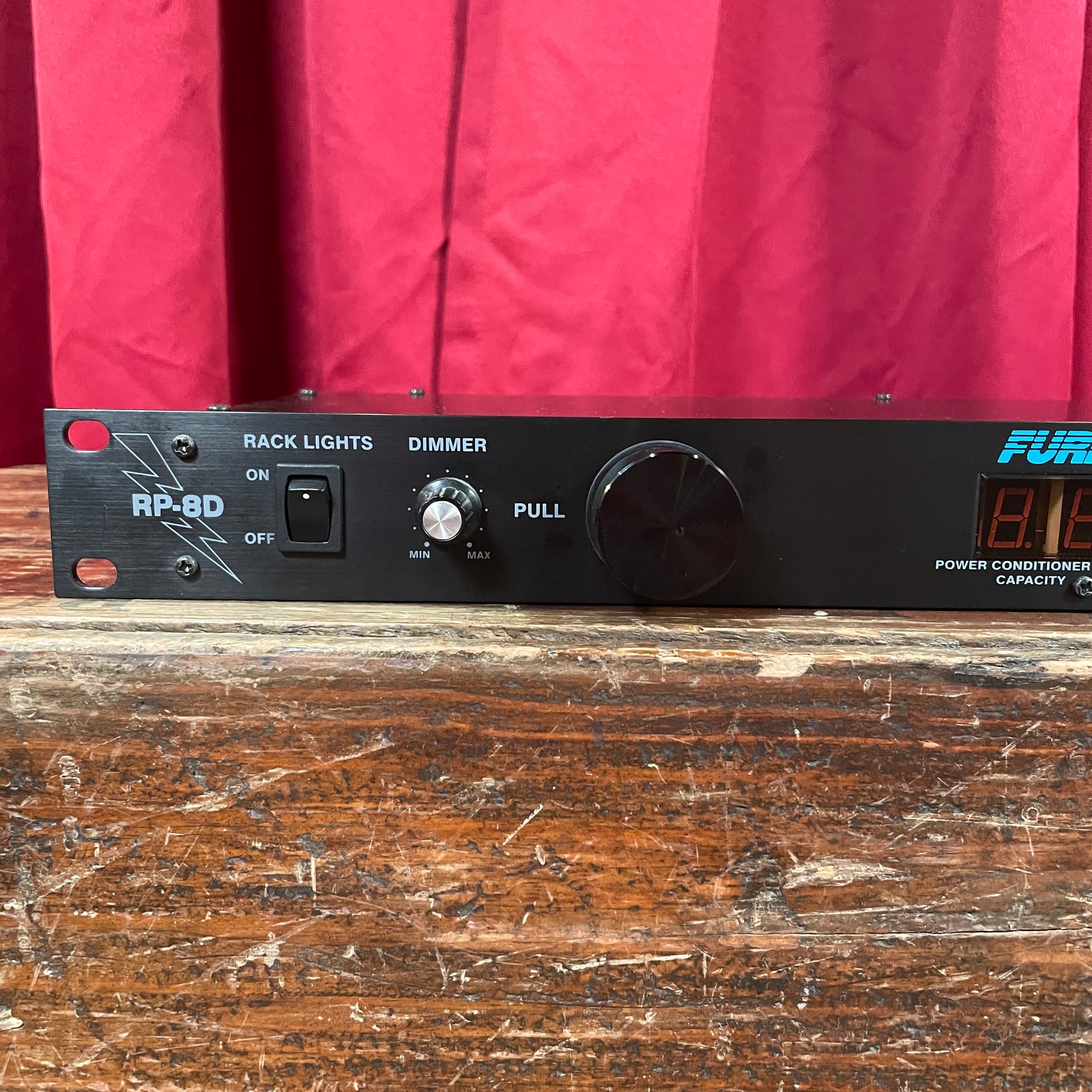

The RP8D feature two slide-out, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level. The RP8D adds a bright red, three-digit LED meter that displays incoming voltage. The RP8 is designed for applications where lights are not required, and offers the same protection for your equipment.

All Furman Performance Series Conditioners protect your delicate electronic equipment by combining high voltage varistor (MOV) surge and transient suppressors. The fast-acting suppression circuit quickly responds to clamp transient voltages to safe levels. An RFI/EMI interference filter works to prevent noise from fluorescent lights, certain dimmers, radio transmitters, and similar sources of 'electronic pollution' from contaminating the AC line and from there, leaking into sensitive audio, video, or computer circuits. All models are NRTL/TUV listed.

Circuit Breaker
For safety, a circuit breaker is provided on the rear panel. If the total load on the Power Conditioner (combining all outlets) exceeds the 15A (or 1800 watt limit), the circuit breaker will trip. If this happens, it may be easily reset by pushing in the button. There is no need to replace fuses.

For convenience in travelling, the lamps may be pushed in, safely out of the way. When the rack is again ready to use, they pull out easily (up to 2.75 inches, or 7 cm) and may be rotated and aimed to provide optimum illumination for your equipment. They come supplied with 7 watt night-light bulbs. Cooler-running 4 watt bulbs or even colored Christmas tree bulbs may be substituted if desired. Replacements are readily available at most hardware stores or almost anywhere household light bulbs are sold, and can be ordered from Furman. Bulbs are easily replaced without removing the unit from the rack by unscrewing the cap on the end of each light tube.

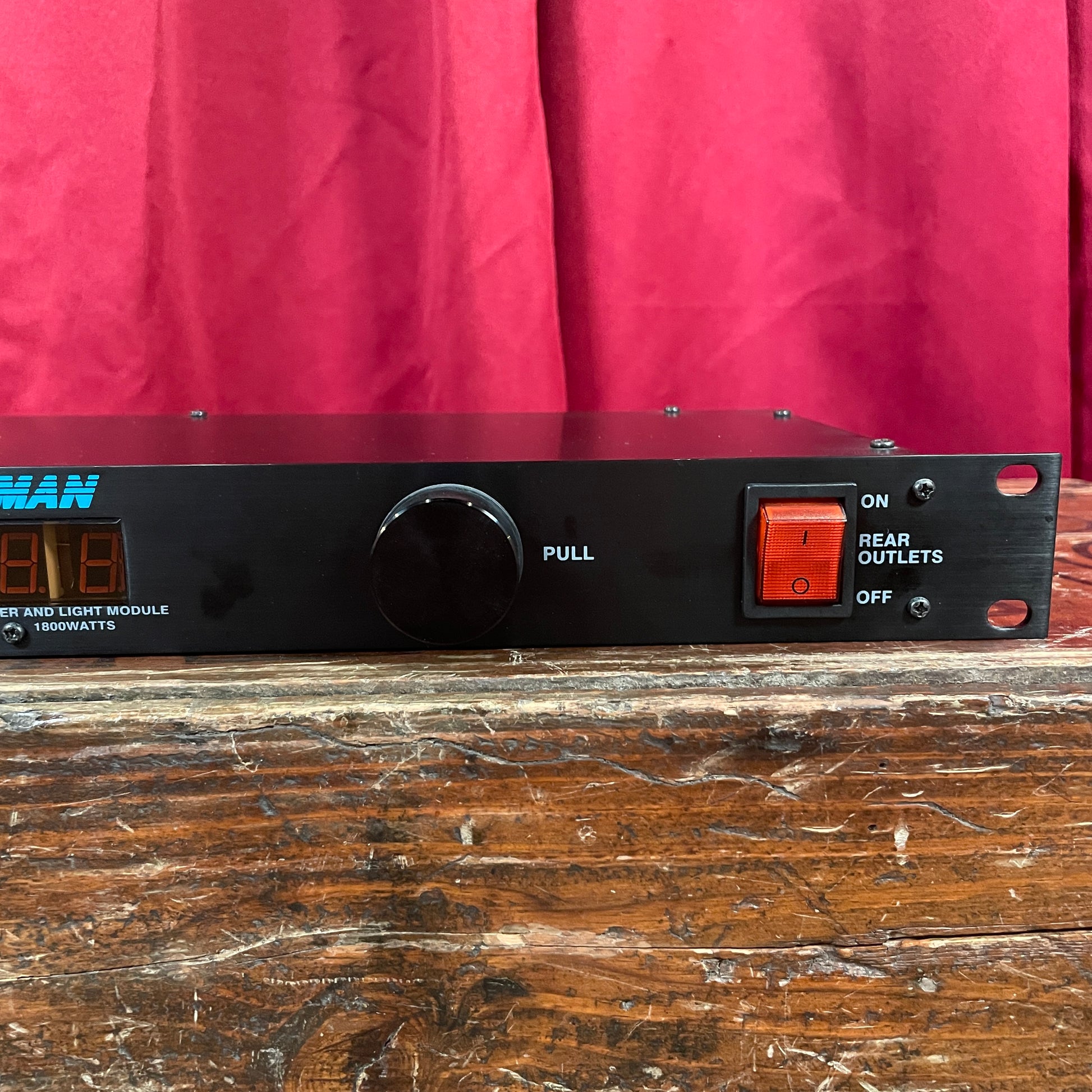

All models have a convenient master switch for the rear outlets which glows when the power is on. In models with lighting, there is a separate 'Rack Lights' switch for the lamps, plus a dimmer control knob which increases the lamps' brightness.

Maximum output current: 15 amps (1800 watts at 120 VAC)

Line Cords: 6 ft. captive, 14 AWG, with 3-conductor Edison plug

Lamps: 2 x 7 watts

AC Voltmeter:
Range 60 to 150 VAC;
Accuracy +/- 2 VAC

Spike Protection Mode: Line to neutral, neutral to ground, line to ground.

Clamping Voltage: 250 volts peak

Maximum surge current: 4,500 amps

Maximum spike energy: 102 joules

Noise attenuation: Transverse mode: Greater than 20 dB, 1.5 to 200 MHz.

Dimensions (HxWxD): 1.75 x 19 x 7.5 in. with light tubes in; when fully extended light tubes reach 3.5in. from front panel surface.

Weight: 5 lbs (2.3 kg).

Construction: Steel chassis, black painted

Power Consumption: 14 watts if lamps are present
