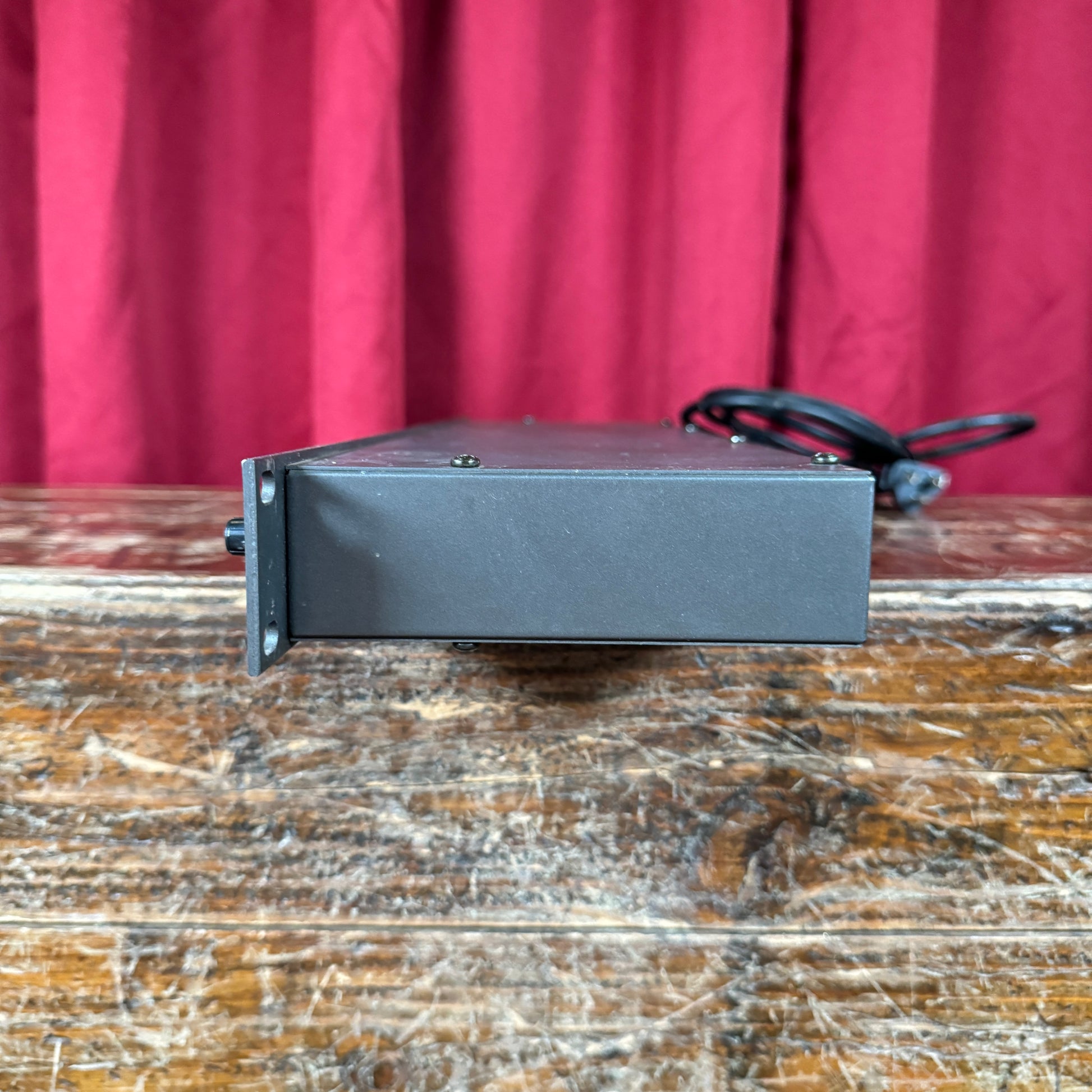

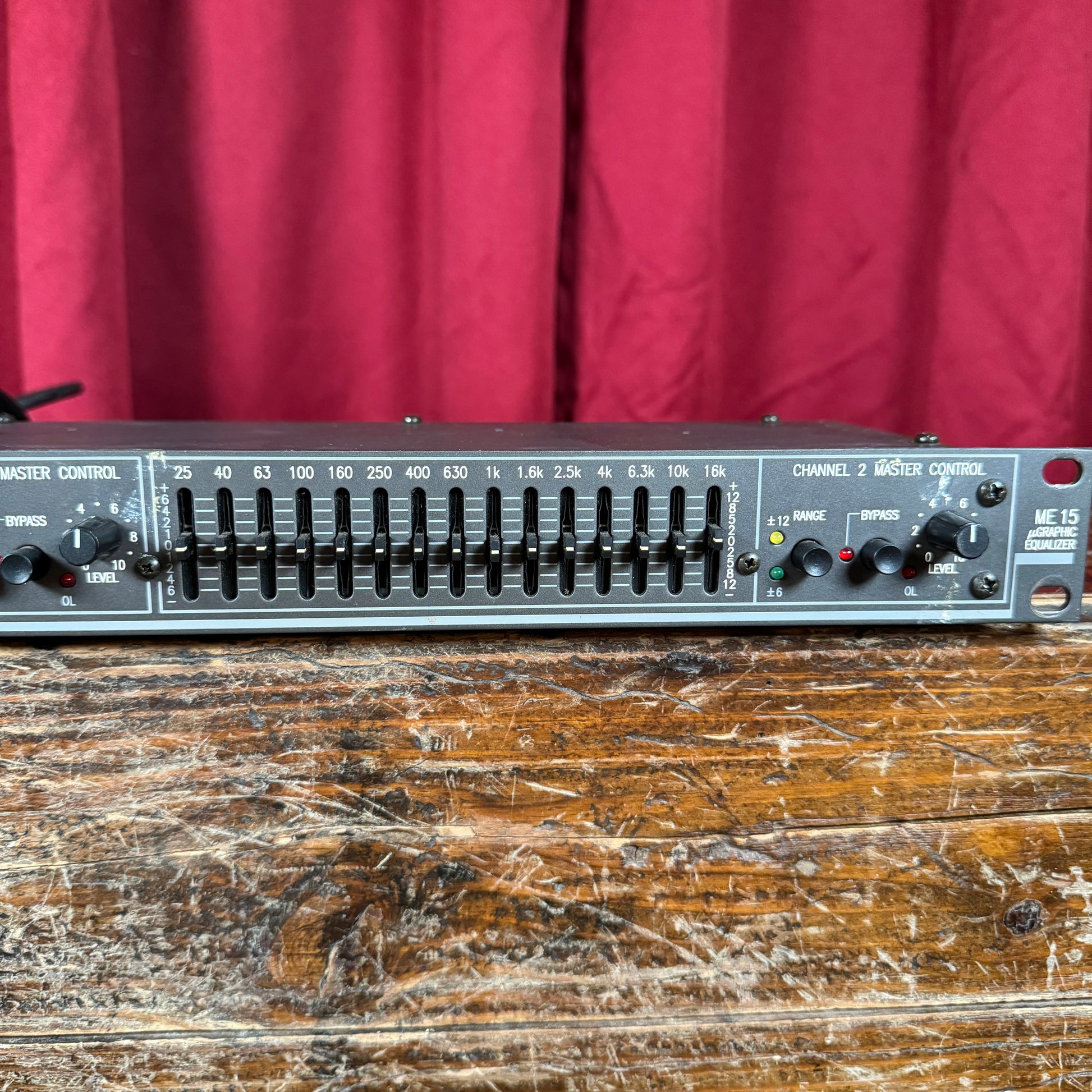

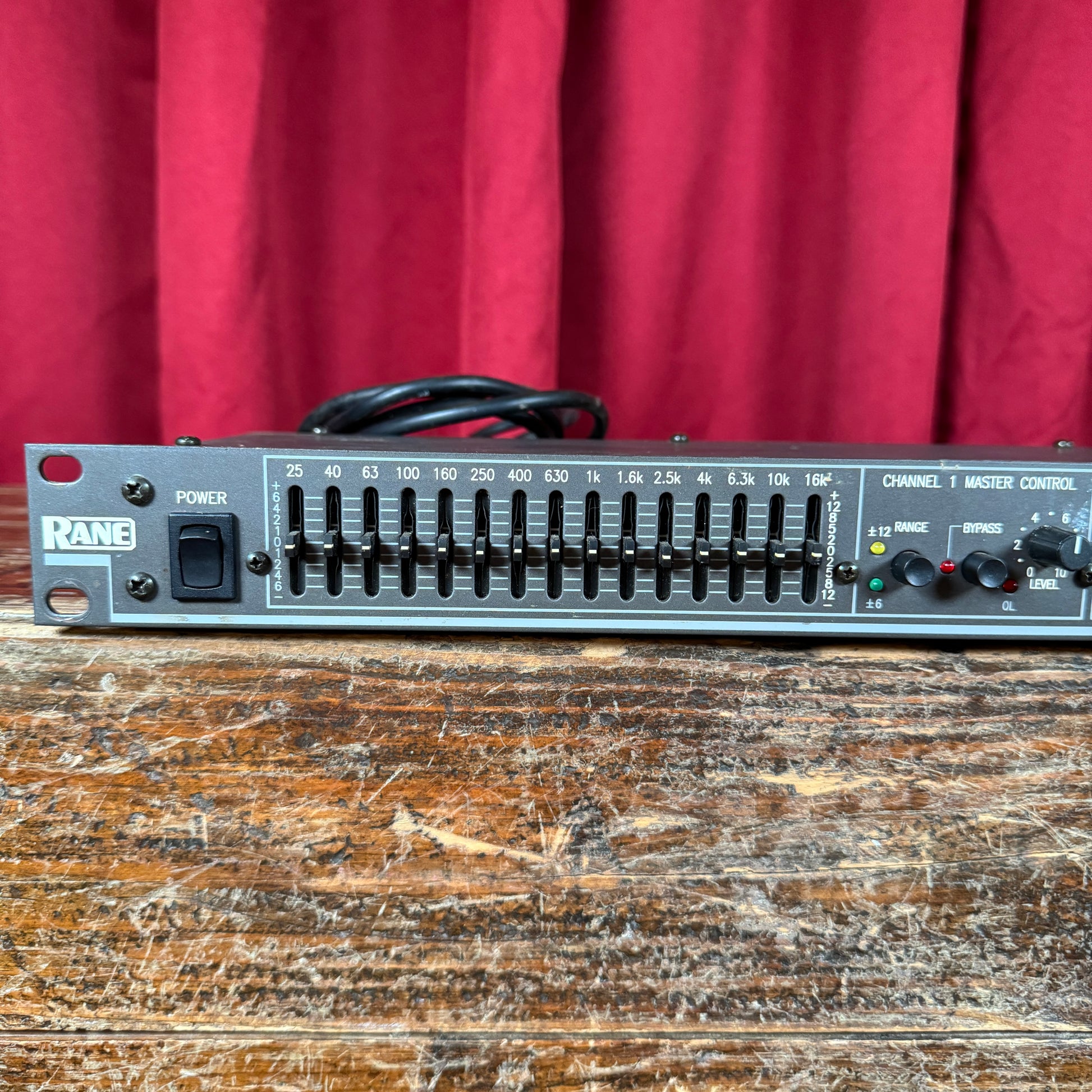

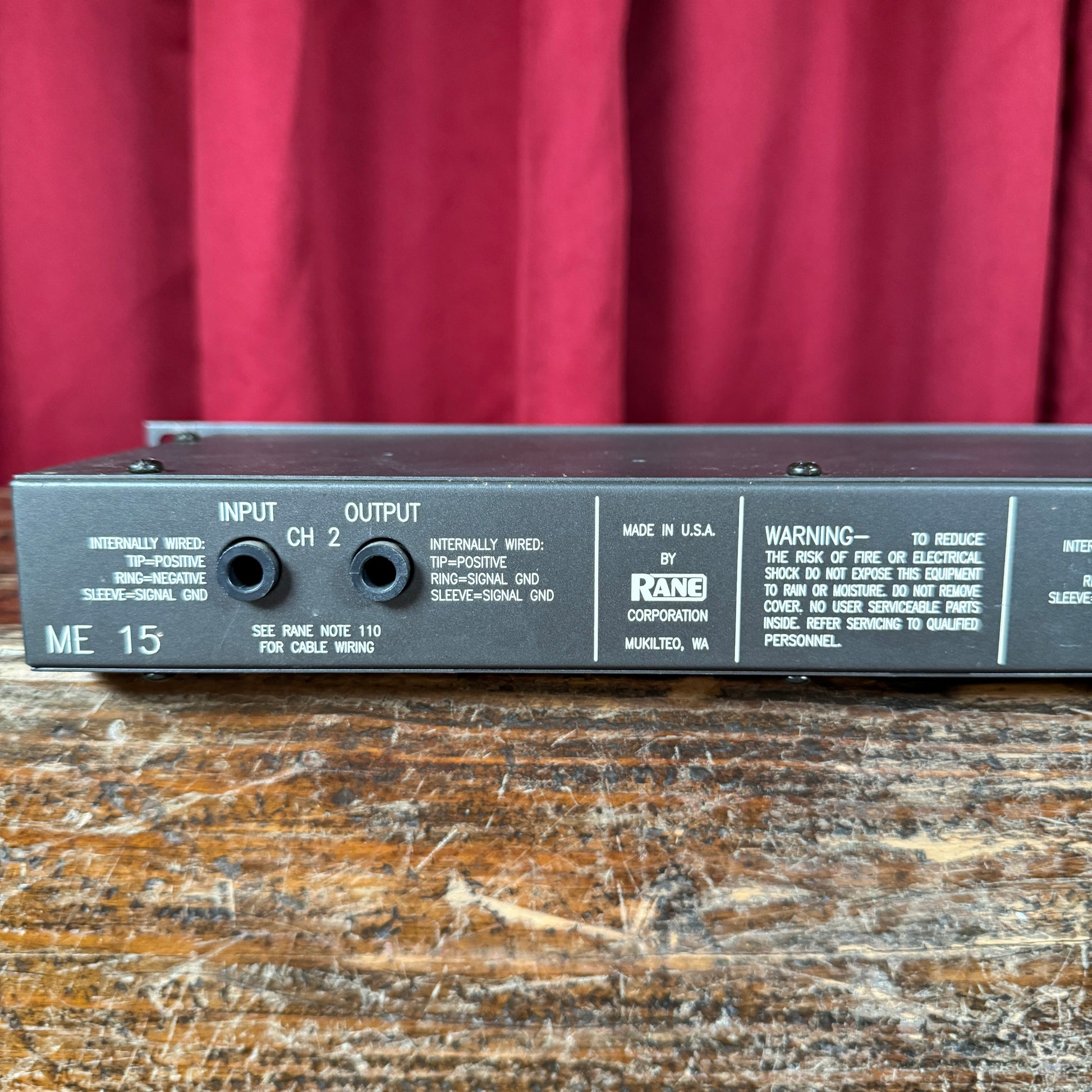

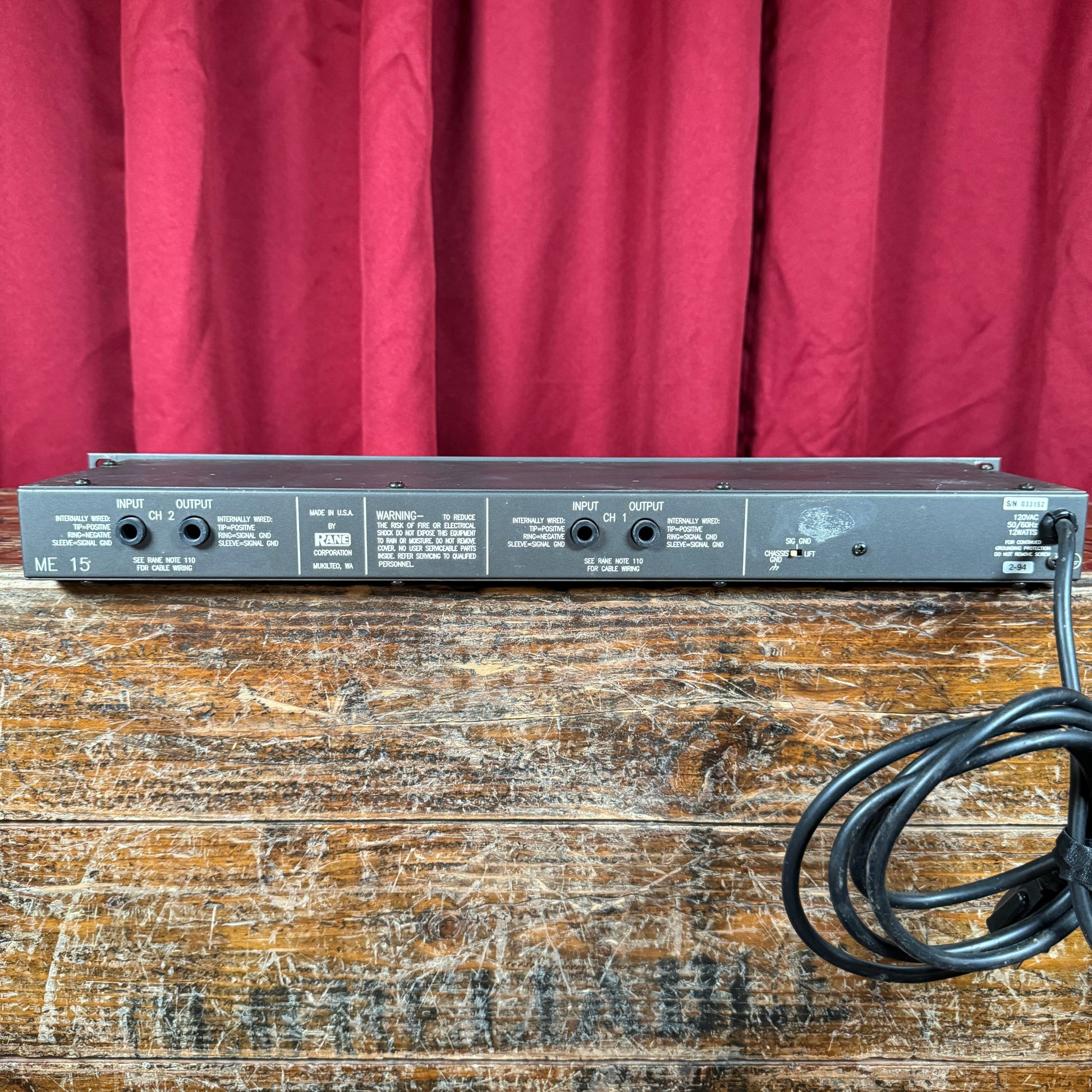

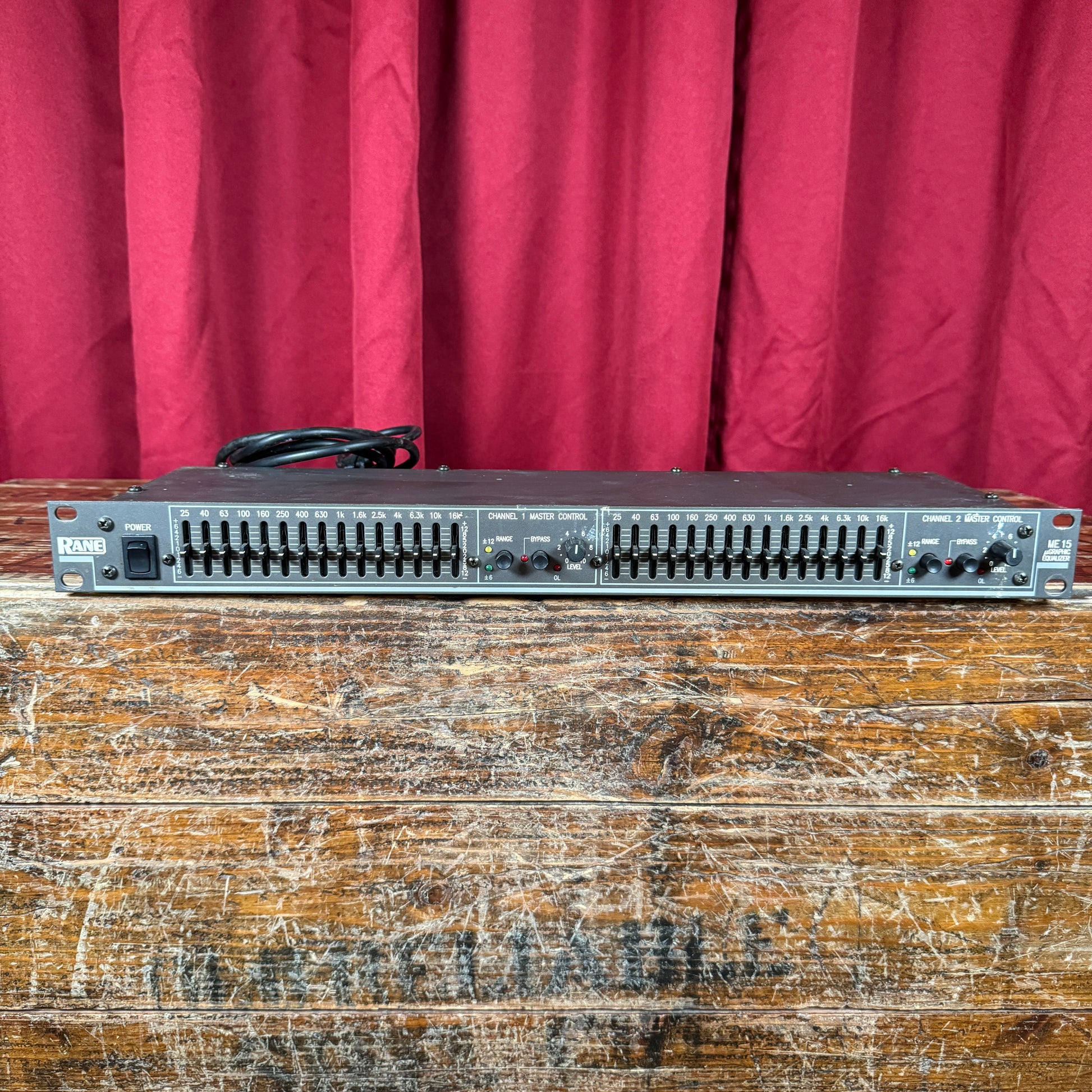

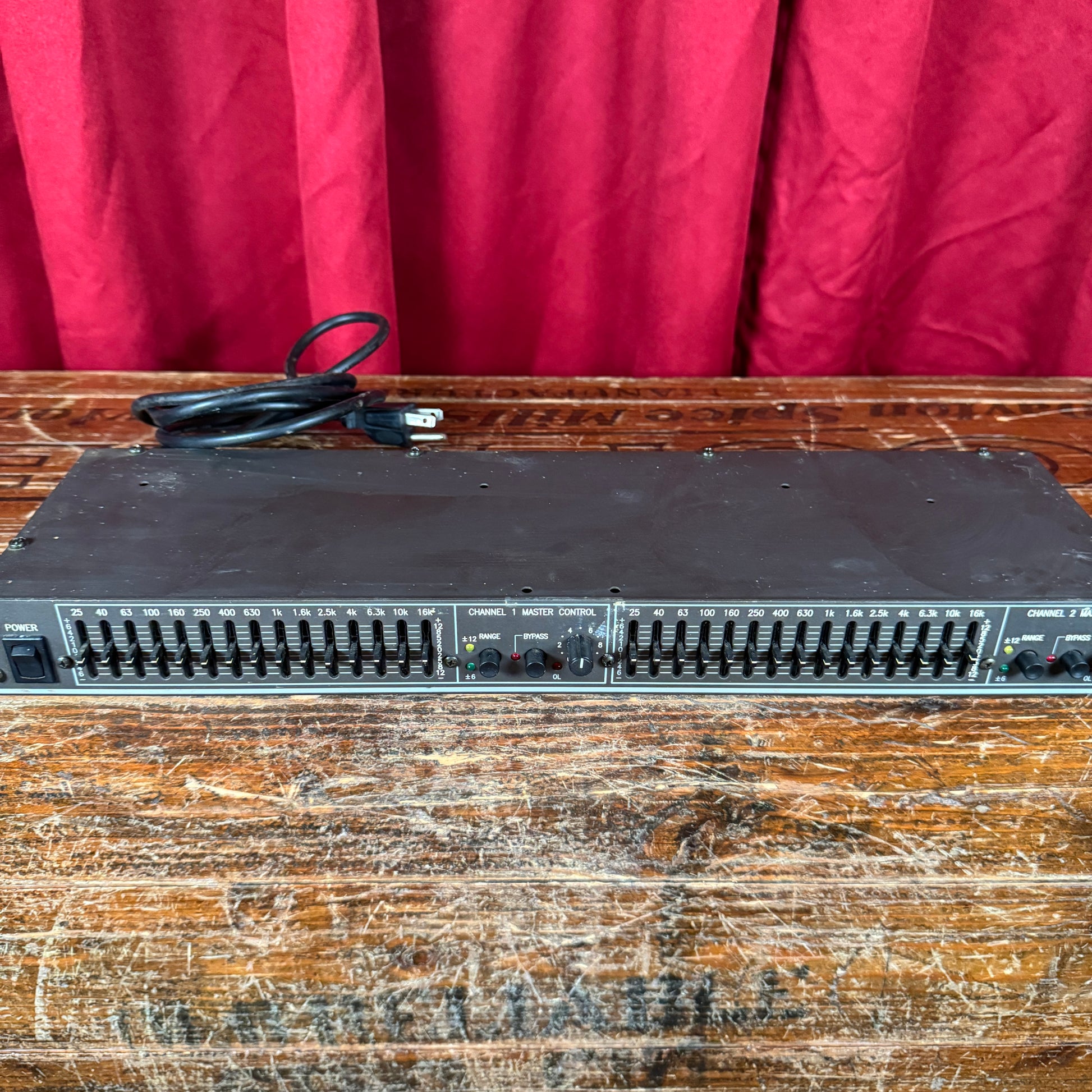

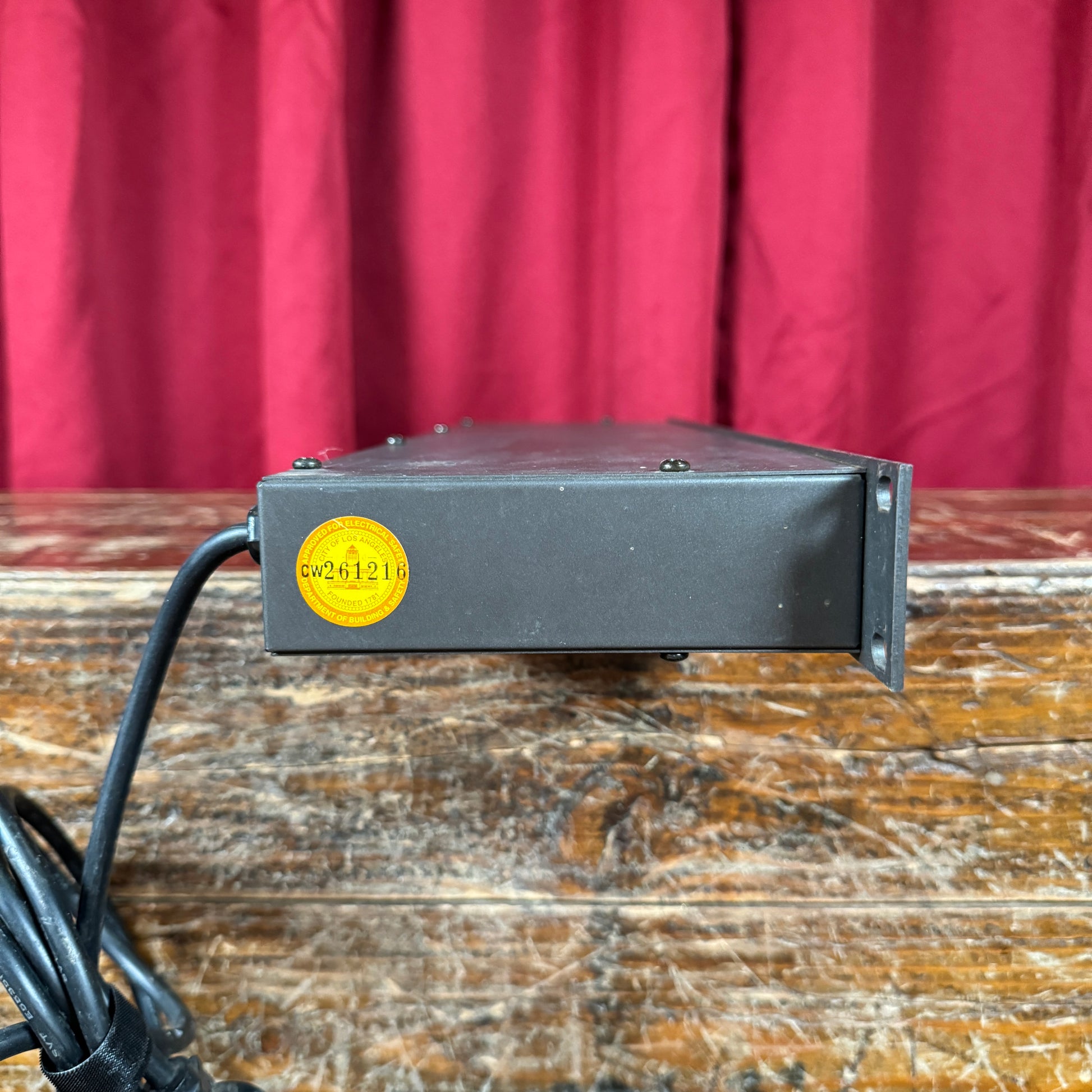

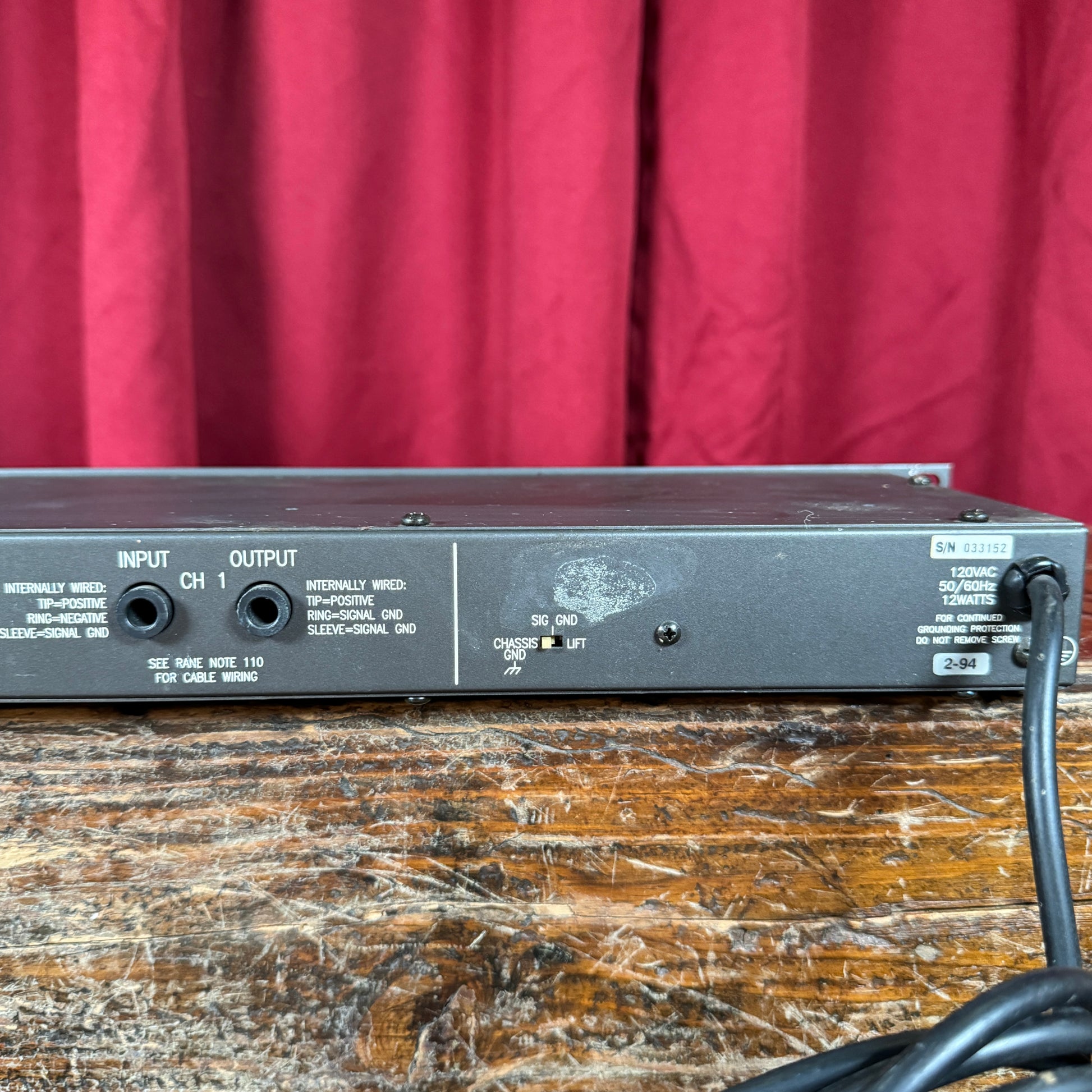

For your kind consideration is this Rane ME15 dual channel 15-Band graphic EQ. It's in very good condition overall with some light wear and a few spots of tape residue. The unit has been tested and all sliders, pots, switches, and lights are all functional. Enjoy!
Specifications:
Constant-Q Bandpass Filters: 2/3 octave bandwidths on precise ISO centers, 25-16 kHz
Boost/Cut Range: switchable ±6 dB or ±l2 dB
Built-in Low Cut Filter: -3 dB at 20 Hz (18 dB per octave)
Built-in Ultrasonic Filter: -3 dB at 60 kHz (6 dB per octave)
Overall Gain Range: Off to +6 dB (minimum)
Frequency Response: 20 Hz to 60 kHz, +0/-3 dB
Signal To Noise Ratios: Unweighted, 20 kHz bandwidth
Boost/cut Centered, Unity Gain: 108 dB below +20 dBu
Boost/cut Centered, Maximum Gain: 107 dB below +20 dBu
THD + Noise: Less than .009%, 20 Hz to 20 kHz, @ +4 dBu (1.23V) output
Intermodulation Distortion (SMPTE): less than .005% @ +4 dBu output
Input Impedance: 20,000 ohms
Output Impedance: 100 ohms
Maximum Input Level: +21 dBu (9 Volts)
Maximum Output Level: +21 dBu (9 Volts)
Dimensions: 1.75" H x 19" W x 5.25" rack depth, all steel chassis
Weight: 5 Ib. net
Note: 0 dBu = .775 Volts
